RotaValve™ for Agilent ICP-OES

---

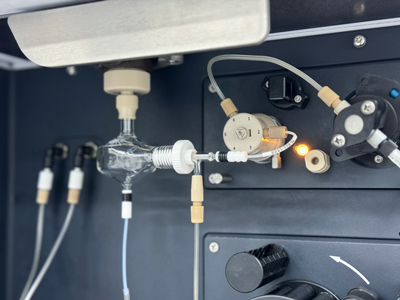

RotaValve with Nebulizer Connection on Agilent ICP-OES.

Key Features of the RotaValve:

• Optimized for ICP: Purpose-built with low dead volume for precise sample injection and minimal carryover.
• Purpose-Built for ICP: Low dead volume minimizes carryover and ensures accurate sample injection.
• Compact, Efficient Design: Integrated mixing chamber ensures complete blending of sample and reagent for reliable results.
• Dual Configuration Flexibility: Easily switch between 6-port and 7-port setups using a removable Tee, no valve change required.

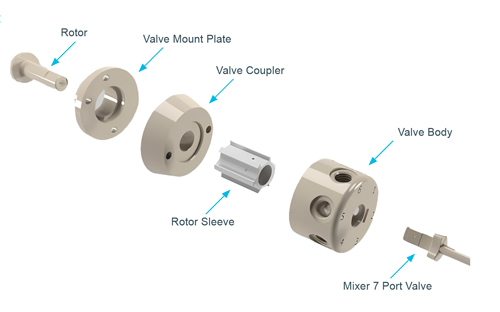

• Rugged & Field-Serviceable: Durable rotor/stator design resists chemicals and wear; only replace worn parts, not the entire valve.
• Reliable, Leak-Free Sealing: ¼-28 ratchet fittings provide consistent torque and easy, tool-free sealing, no overtightening guesswork.
• Seamless Compatibility: Plug-and-play with Agilent 5000 Series ICP-OES; no software modifications needed.

---

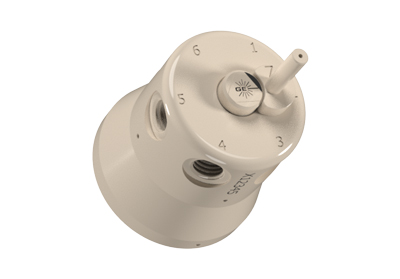

P/N 70-803-1738 - RotaValve for Agilent ICP-OES

Ordering Information

---

Valve Tubing Kit for Agilent® 5000 Series ICP-OES

• The 6/7 Port Valve has been designed specifically for use in ICP analysis requiring the addition of an Internal Standard or Dilution of the sample. A major advantage is the incorporation of the Tee piece into the Valve design which reduces the number of components required.
• The Valve is made up of one 6 Port Valve and is switched between two positions with a removable Tee piece creating the 7th Port for the Valve.
• All ports on the 6/7 Port Valve have been numbered to allow easy connection to the Valve tubing kit.
• Various Sample Loop sizes available on request
• Requires Valve Tubing Kit P/N 70-803-1869

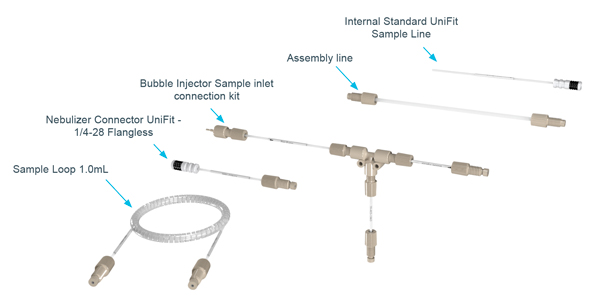

P/N 70-803-1869 - Valve Tubing Kit for Agilent® 5000 Series ICP-OES

Ordering Information

For more information contact us at enquiries@geicp.com
